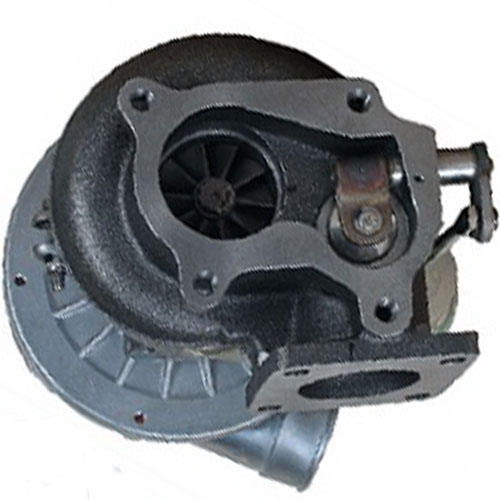

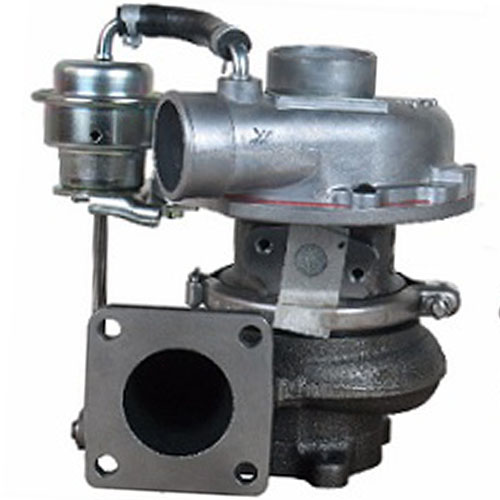

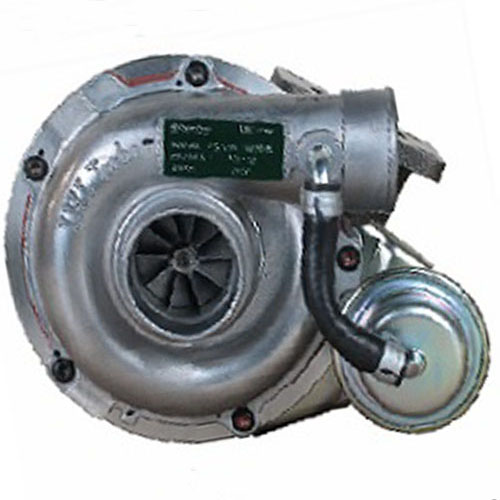

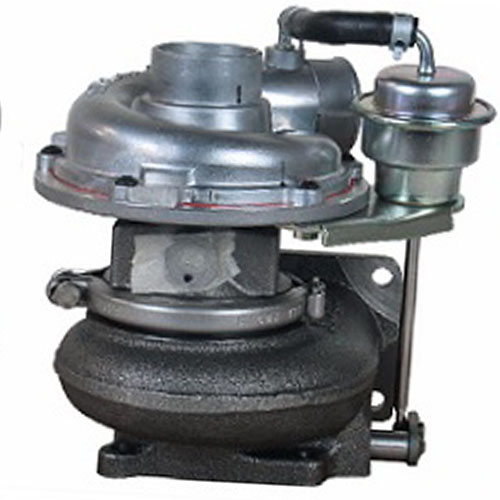

Yanmar Marine, Komatsu Backhoe Loaders RHF5 Turbo VC430094 CYEF
Part Number VC430094
Previous Part Number VA430094, VB430094
V-SPEC. CYEF
OE Number 123945-18010, 12394518010, F51CADS0094B, F51CAD-S0094B
Description Komatsu Backhoe Loaders, Marine
Turbo Model RHF5-90004P20NHBRL3730CEF
CHRA
Engine Manufacturer Yanmar
Fuel Diesel
Backhoe Loaders WB150AWS-2N, WB150PS-2N
S/N A90002-UP, A70010-UP
Engine 4TNV, 4TNV106T, 4TNV106T-S2FA, 4TNE106T-IFA
Angle α (compressor housing) 180º
Angle β (turbine housing) 247º
Bearing Housing 313072 (314315)(Oil Cooled)
Turbine Wheel 314654 (Ind. 44. mm, Exd. 53. mm, Trm 6.73, 12 Blades)
Comp. Wheel 313583 (314519)(Ind. 36.6 mm, Exd. 52.5 mm, Trm 6.19, 10 Blades, Superback)
Back plate 197340 (408045-0041)
Heat shield Number 193975
Repair Kit NH459809 $99.00 NEW IN STOCK
Turbine Housing AR 20
Gasket (turbine inlet) 210276 (123901-18090, 2445051) (Inox Steel)
Gasket (turbine outlet) 210578 (2495128) (Inox Steel)
Gasket (oil inlet) 210578 (1203215, 1203715) (Paper)
Gasket (oil outlet) 210243 (2445067) (Paper)
Gasket Kit 215018 (2505291)
Manufacturer IHI
Applications
Yanmar Marine, Industrial 4TNV106T
