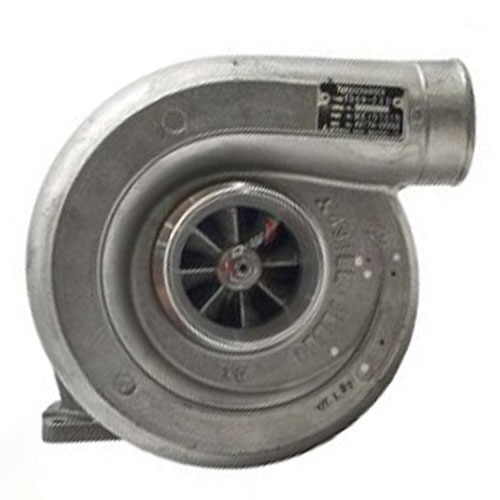

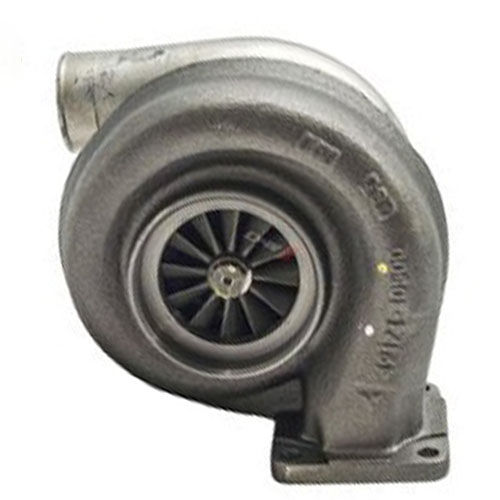

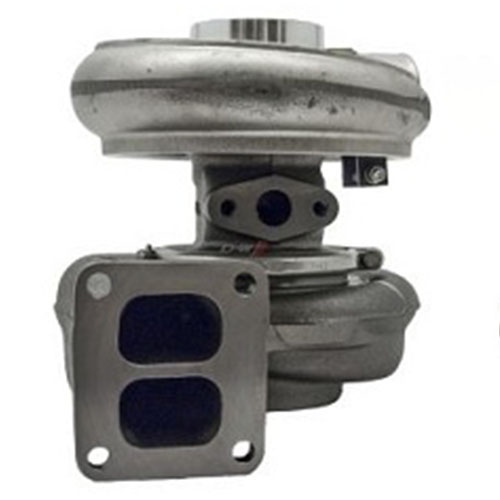

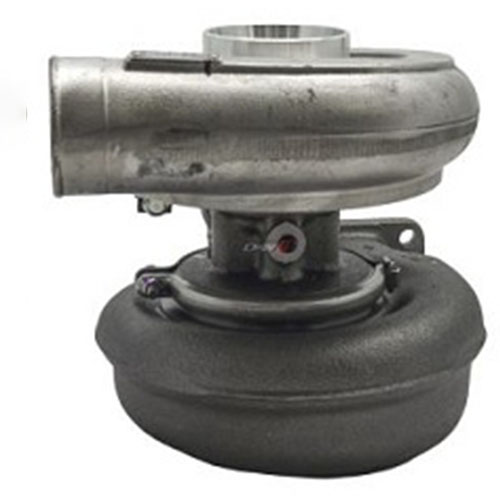

Mitsubishi Various, Kato, kobelco TD08 Turbo 49174-00566
Part Number 49174-00566
Previous Part Number 49174-00560, 49174-00565, 4917400566, 49174-00570, 49174-00572, 49174-00580, 49174-00680, 49174-01130, 49174-01142, 49174-01143, 49174-01150, 49174-01200, 49174-05565, 49174-05566
Description Mitsubishi Fuso Truck & Bus kobelco SK12-N2 SK16-N2, Various Kato Off Way
OE Number ME050741, ME050579, ME050584, ME050590, ME053897, ME053937, ME053989, ME157213, ME157215, ME157216, ME157416, X28200-83601, X2820083601, 270619978548
CHRA 49174-09200 (49174-08110)
Model HD1250SEV/2
Turbo Model TD08-22D-28, TD08-22D/28
Engine Model 6D22T, 6D22-CT
Engine Manufacturer Mitsubishi
Fuel Diesel
Bearing Housing 49174-25100 (49174-20101)(Oil-Cooled)
Turbine Wheel 49174-30100 (Ind. 84.7 mm, Exd. 72.2 mm, 12 Blades)
Comp. Wheel 49174-44201 (49174-44200)(Ind. 58.9 mm, Exd. 89.97 mm, Trm 2.74, 6+6 Blades, Super Back)
Back plate 49174-22510 (49188-22500)
Heat shield Number 49188-19100
Repair Kit 49188-80200
Turbine Housing 49174-10500
Compressor Cover 49174-51300
Turbine Housing AR 28.0
Gasket Kit 126674-18210 (148816-18402, 148816-18403, 148816-18404)
Manufacturer Mitsubishi
Applications
Mitsubishi Kato, Various with 6D22T Engine
