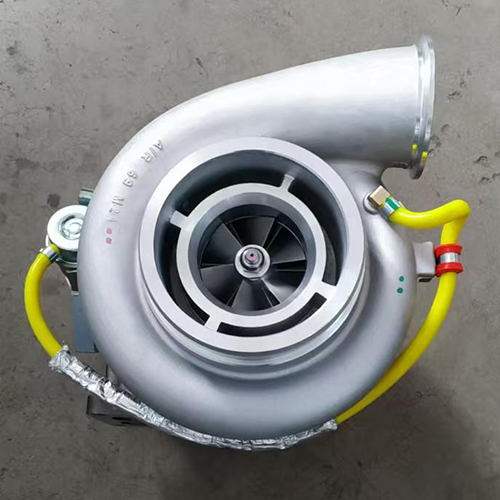

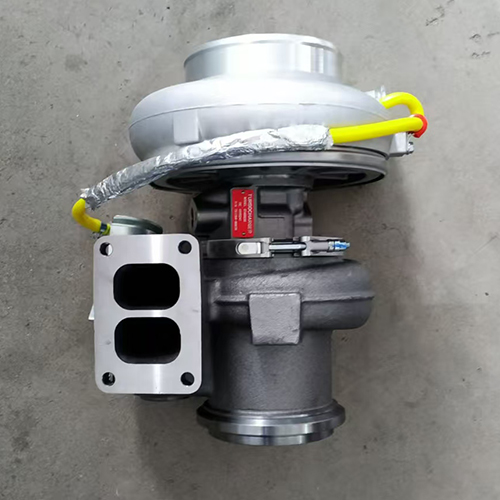

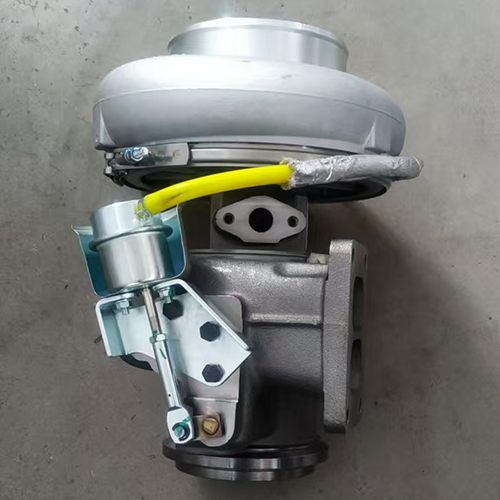

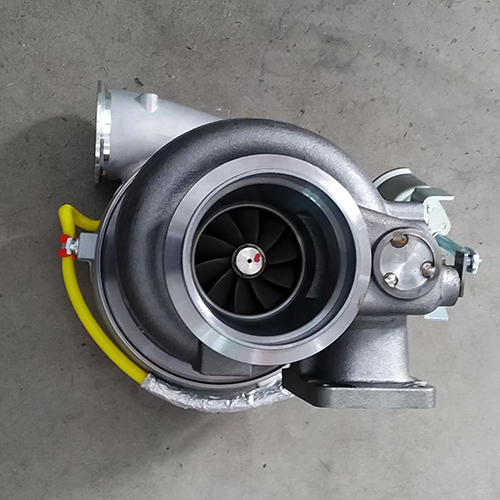

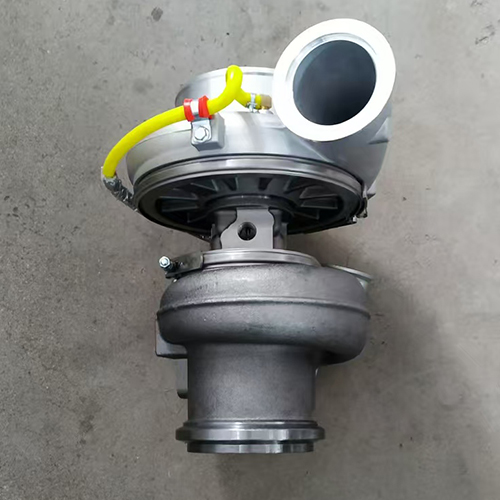

2006- Cummins Various, Case-IH, Cummins STX500 STX530 Tractor (4 wheel drive) GTA5523BS Turbo 761064-0006
Part Number 761064-5006S
Previous Version
761064-0005, 761064-0002, 761064-0006, 761064-0011, 761064-0007, 761064-6
761064-5007 761064-0005 761064-5005 761064-5005s
OE number
4955240, 2868728, 2868729, 3104293, 3104294, 3104395, 3104765, 3104768, 4955240, 4956009, 3104768.0
Oem (cummins) part no: 3104766 / 3104769 / 4955241 / 3104454 / 3104453
Description Various, Construction, JI Case, Case-IH, Cummins
CHRA 712371-0137 (712371-5137S, 3104427, 3104427RX, 3104427NX)
Turbo Model GTA5523BS
Engine ISX15, QSX15
Displacement 15.L, 1500 ccm
Fuel Diesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 165°
Bearing Housing 706666-0028 (Oil Cooled)
Turbine Wheel 451941-0002 (451941-0001, 451941-0005)(Ind. 101.96 mm, Exd. 111.25. mm, 10 Blades)(Boreless Type)
Comp. Wheel 710081-0005 (Ind. 84.2 mm, Exd. 123.49 mm, 7+7 Blades, Boreless)
Back plate 409722-0023 (706668-0008)
Heat shield Number 710891-0001
Turbine Housing 759054-0009
Turbine Housing (W. Waste Gate) 743732-0029
Compressor Cover 49168-52100 (MD613541)
Actuator 729592-0008
Turbine Housing AR 1.18
Actuator Cover 701585-0001
Gasket Kit 468190-0000 (716909-0049)
Manufacturer Honeywell-Garrett
Applications
2006- Cummins Various, Case-IH, Cummins STX500 STX530 Tractor (4 wheel drive) With ISX15, QSX15 Engine
