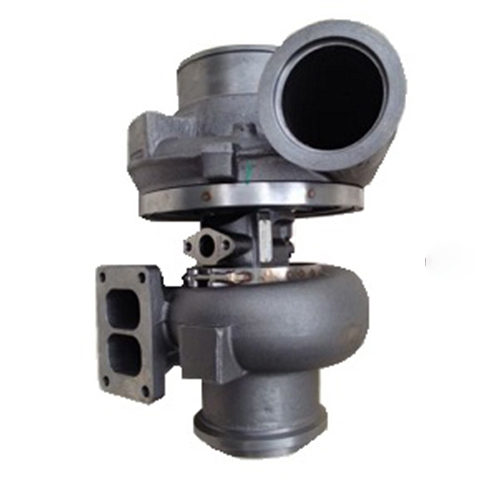

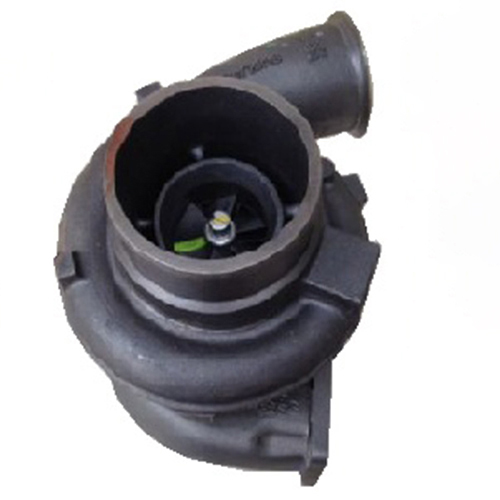

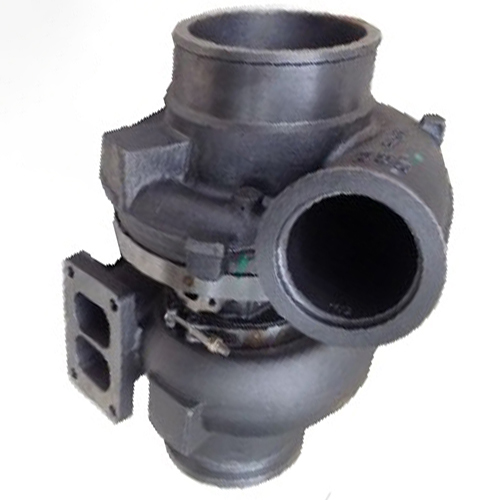

Caterpillar Industrial Generator Set GTA5008B Turbo 750525-0021
Part Number 750525-5021S
Previous Version 750525-0021, 750525-9021, 750525-21, 750525-0011, 750525-11
OE Number CH11946, 274-6296, 2746296, R/CH11946
Description Industrial Generator Set
Turbo Model GTA5008, GTA5008B, GTA5008BS
CHRA 712371-0204 (712371-0019, 712371-5117S, 712371-0117, 712371-117, 0R-7856, 0R7856, 10R-2623, 10R2623, 194-7919, 1947919, 255-5477, 2555477)
Engine C15 Standby Generator Set C5H00001-UP
Engine Manufacturer Perkins
Displacement 15.0L, 15000 ccm, 6 Cylinders
KW 505
RPM Max 1500
Torque 3207 Nm
Fuel Diesel
Engine Generator Set C15
Generator SR4, SR4B
Industrial Engine C15
Bearing Housing 706666-0004 (Oil Cooled)
Turbine Wheel 451938-0001 (Ind. 90.67 mm, Exd. 99.2 mm, Trm 67, 10 Blades, Boreless)
Comp. Wheel 704746-0009 (705319-0002)(Ind. 78.6 mm, Exd. 108.0 mm, Trm 2.7, 6+6 Blades, Superback)
Back plate 706668-0019
Heat shield Number 707843-0001
Repair Kit 468267-0011 (1102050750)
Gasket Kit 468190-0000 (1900120791, 118099-0000)
Gasket (turbine inlet) 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
Gasket oil inlet 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Gasket (turbine inlet) 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
NOTE Partially restricted
Manufacturer Honeywell-Garrett
Applications
Caterpillar, Perkins Industrial Generator Set with C15 Engine
