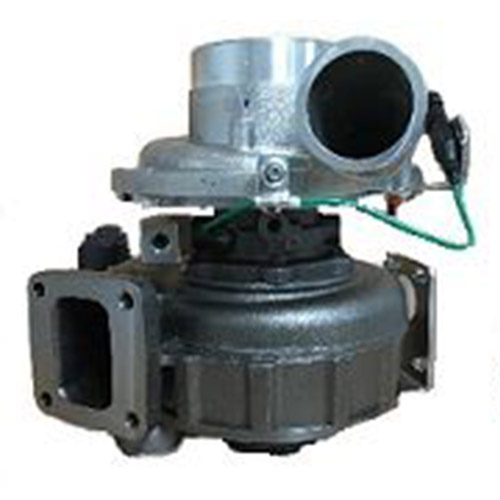

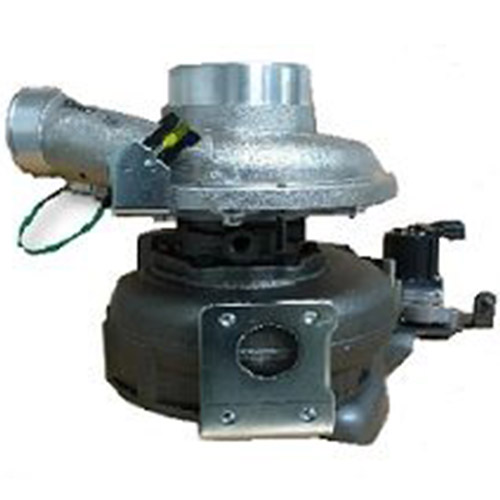

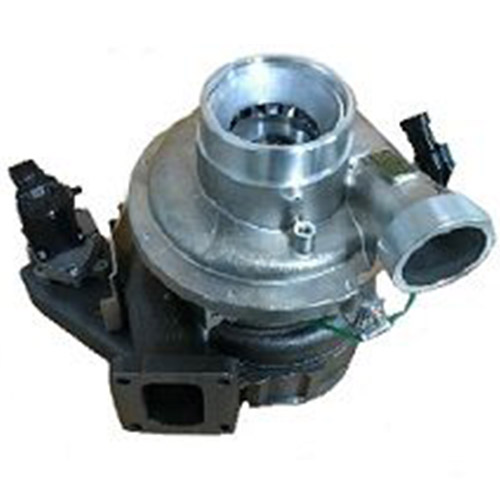

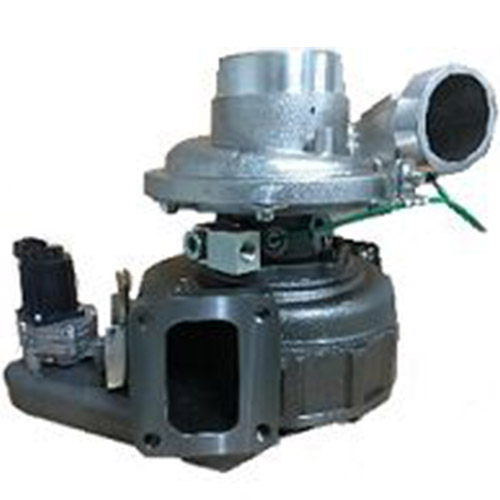

2009- HINO Truck 700 RHG8 Turbo VA520026 VXDF
Item No.: 6.105
2009- HINO Truck 700 RHG8 Turbo VA520026 VXDF
Part Number VA520026
Previous Version VB520026, VC520026, VD520026, VA520033, VB520033, VA520034, VB520034, VC520034, VD520034, VE520034, VF520034, VA520037, VB520037, VB520037, VD520037, VE520037, VF520037
Short Spec. VXDF
OE number 24100-4600A, 241004600A, S1760-E0030, S1760E0030, S1760-E0030A, S1760E0030A, 24100-4600A, 241004600A, S1760-E0030B, S1760E0030B, S1760E0031, S1760-E0031, S1760-E0031-A, S1760E0031A, S1760E0032, S1760-E0032, G82VED-S0062B, G82VED-S0062G, G82VEDS0062B, G82VEDS0062G
Description HINO Truck Buses
CHRA (G82VED-S0062C, G82VEDS0062C)
Turbo Model RHG8V-120006P29NHBRSB663DUBT, RHG8
Engine YL51, E13C
Fuel Diesel
Engine Manufacturer HINO
Angle α (compressor housing) 35°
Angle β (turbine housing) 20°
Bearing Housing (Water Cooled)
Comp. Wheel (Ind. 92.01 mm, Exd. 63.3 mm, 7+7 Blades, Billet)
Turbine Housing AR 30
Manufacturer IHI (Clover)
Applications
2009- HINO Truck 700 with YL51 Engine
