Part Number 4040919
Previous Version 4033428
OE Number 65091007107, 65091009107, 65.09100-7107, 65.09100-9107
Description Doosan GV180 Marine
CHRA 4032342
Manufacturer Part Number 4040920

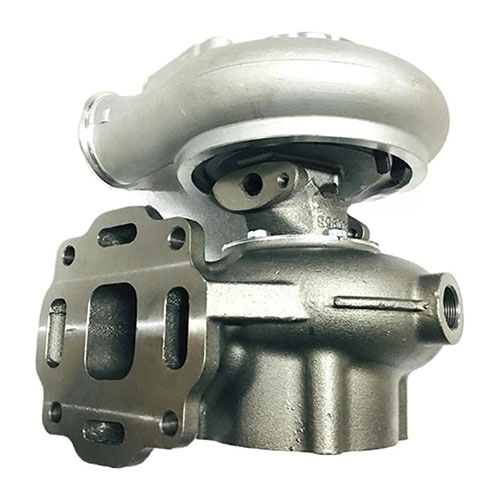

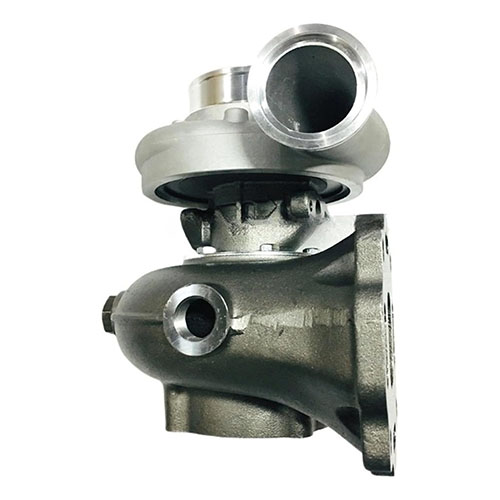

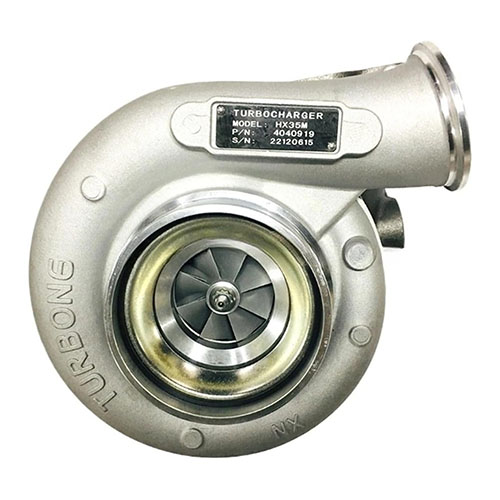

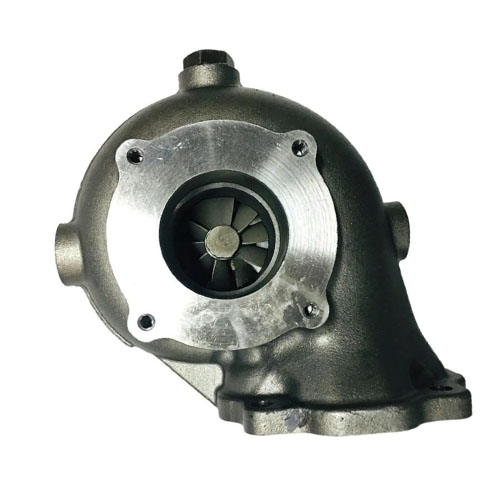

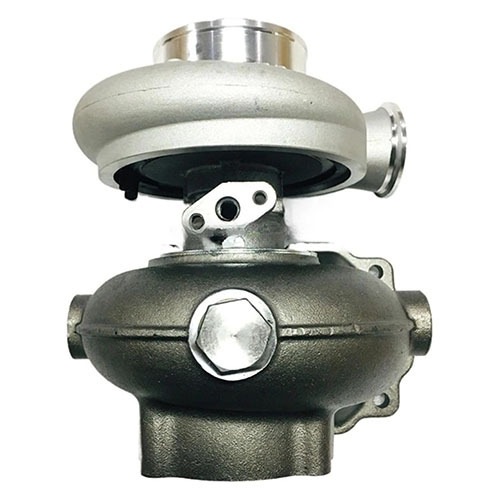

Turbo Model HX35M
Engine Manufacturer Doosan, Daewoo (D.H. I)
Displacement V8 Cylinders
MOTAIR 336670
BE TURBO 130530
Fuel Diesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 90°
Bearing Housing (Water Cooled) 3598668
Turbine Wheel 3519336 (3595832, 351933600) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435)
Comp. Wheel 3599594 (3599650, 359959400) (Ind. 52. mm, Exd. 78. mm, 7+7 Blades, Superback)
Back plate 3530923 (353092300)(1154351300)
Heat shield Number 3519302 (3519304, 351930200) (1152301340)
Repair Kit 4027448 (402744800) (1153035751)(Minor)
Turbine Housing (Water Cooled) 3521298
Compressor Cover 4035120
Gasket Kit 3545769 (215149)
Manufacturer Holset
Applications
2005- MAN, Doosan Infracore, Daewoo (D.H. I) Marine
