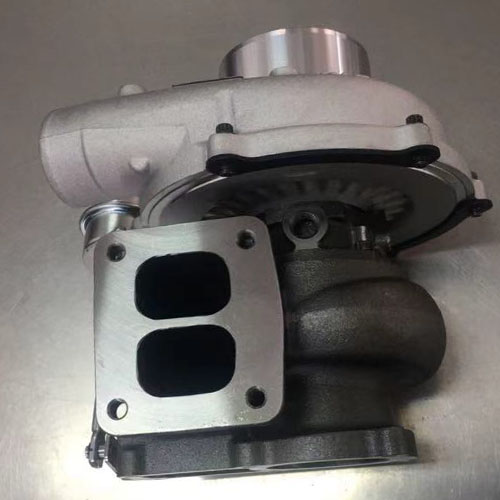

2004- Nissan Highway Truck (U D) GT3576DL Turbo 702172-0012
Part Number 702172-5012S
Previous Version 702172-0010, 702172-0012, 702172-12
OE number 14201-Z5905, 14201Z5905
Description NISSAN Highway Trucks and Buses
Application NISSAN UD (LK, MK, PK)
Engine B6-60 Ti, FE6TA, FE6TC
CHRA 700267-0001 (700267-5001S, 700267-0002)(1000010127)
Turbo Model GT3576DL
Displacement 6.9L, 6900 ccm, 24V Cylinders
KW 170
Engine Manufacturer Nissan
Bearing Housing 479822-0002 (Water Cooled)(1900011040B)
Turbine Wheel 451360-0002 (451360-0001)(Ind. 67.97 mm, Exd. 60. mm, Trm 10.89, 10 Blades)(1100016037)
Comp. Wheel 434292-0011 (434292-0009)(Ind. 76.3 mm, Exd. 57. mm, Trm 6.68, 6+6 Blades, Superback)(1200016266Z)
Back plate 480301-0001 (448301-0001)(carbon seal)(1300016135)
Heat shield Number 447553-0005 (2030016048)
Repair Kit 709147-0001 (1102032750, 5000010173)
Actuator 480021-0017
Manufacturer Honeywell-Garrett
Condition Rebuilt
Applications
2004- UD-Nissan Highway Truck & Buses 2300 FE6TA
