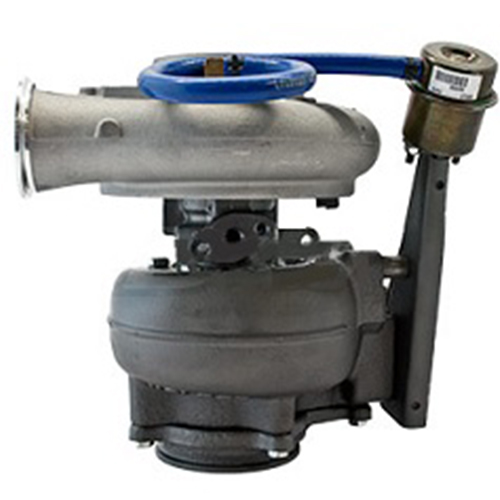

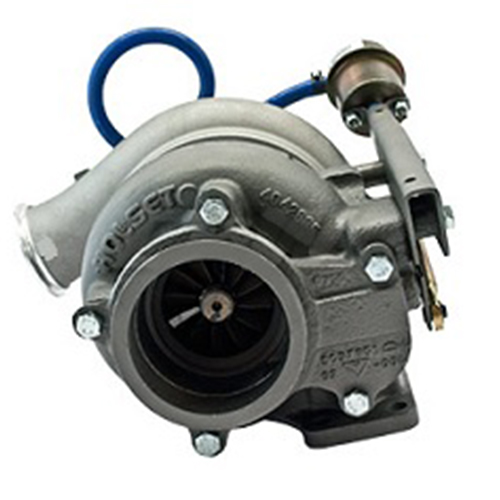

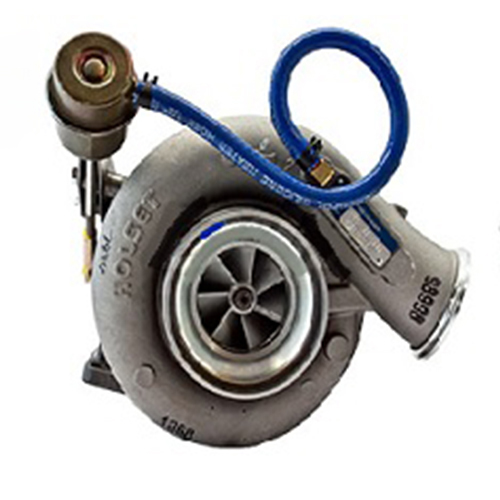

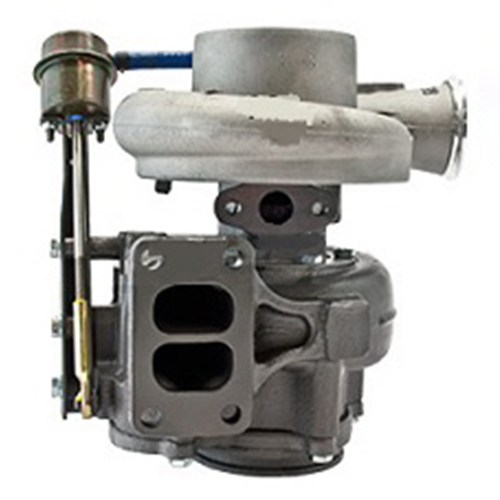

2003-09 Cummins Industrial Engine HX40W Turbo 4039742
Part Number 4039742
Previous Version 4039743, 2839192, 2839193, 2839193H, 2881750, 288175000, 2881750NX, 2881750RX,
OE number 4089961, 4089961RX, 4309090, 4309090NX, 4309090RX
Description Industrial
CHRA 4030874 (4032651, 4031325, 4032695, 4027949)
Turbo Model HX40W, HX40W-E85J71GL/C76L84FH18UD-W
Engine Pegasus QSL
Engine Manufacturer Cummins
Fuel Diesel
Angle α (compressor housing) 360º
Angle β (turbine housing) 325º
Bearing housing 4030886 (3537112, 3593878, 4038197)(Oil Cooled)
Turbine Wheel 4039489 (3596226, 4050572)(Ind. 76. mm, Exd. 64. mm, Trm 10.16, 10 Blades)
Comp. Wheel 4035380 (4035879, 4035380H, 4044562) (Ind. 60. mm, Exd. 84.9 mm, Trm 5.84, 7+7 Blades, Superback)
Back plate 3530923 (1154351300)
Heat shield Number 3519304 (3519302)(1152301340)
Repair Kit 4027448 (3575169, 4032051)(1153035751)(Minor)
Actuator 3598484 $97.33
Gasket Top Turbine Cover 3537960
Gasket Kit 3545575 (1900100057)
Gasket (turbine inlet) 409039-0000 (210022-0000)
Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 129120, 201048, 3500682, 3709738, 3519763, 9738, 9988, 1S4810, 210060-0000, 51914, 148062, 311585, 210018-0000)(1900000025)
Replaced By 2839192
Manufacturer HOLSET
Applications
2003-09 Cummins Industrial Engine with Pegasus QSL Engine
