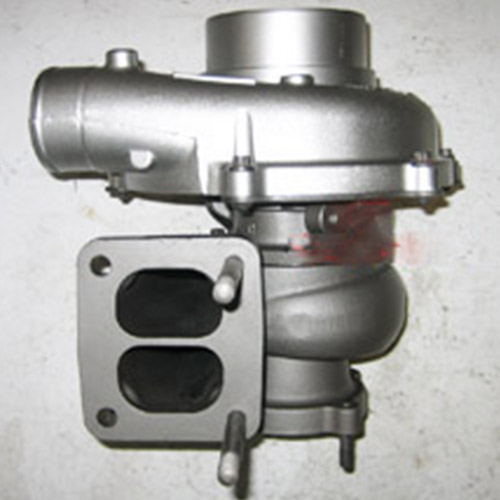

2002- Isuzu Truck FRR GT3576 Turbo 702173-0001
Part Number 702173-5001S
Previous Part Number 702173-0001, 702173-1
OE Number ISUZU 8943906401, 2901099200, 2910099010, 8-94390-6401
OE Number GENERAL MOTORS 97720322
Description Construction, Industrial, Various
CHRA 701282-0001 (701282-5001S)
Turbo Model GT3576
Engine Model 6HK1-TCN
Displacement 7.8L, 7800 ccm, 6 Cylinders
Fuel Diesel
Bearing Housing 447535-0003 (Oil Cooled)
Turbine Wheel 451360-0001 (451360-0002)(Ind. 68. mm, Exd. 62.5 mm, Trm 10.89, 10 Blades)
Comp. Wheel 434292-0011 (Ind. 57. mm, Exd. 76.3 mm, Trm 6.6, 6+6 Blades, Superback)
Back plates, Seal plates Dynamic 448301-0001 (480301-0001)
Heat shield Number 447553-0005
Thrust Collar 448845-0001
Trust Plate 448261-0001
Repair Kit 709147-0002
Turbine Housing 702097-0001
Compressor Cover 449637-0004
Gasket oil inlet 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (oil outlet) 210060 (311585, 148062, 2475013)(Paper)
Manufacturer Honeywell-Garrett
Applications
2002- Isuzu Truck FRR, Construction Equipment with 6HK1-TCN Engine
GMC WT5500 with 6HK1-TCN Engine
It has a T04-based Turbine W/ twin Scroll. A/R-1.05;The outlet measures 2.85, and it has a 76 mm wheel
