** Brand-new Aftermarket is available**

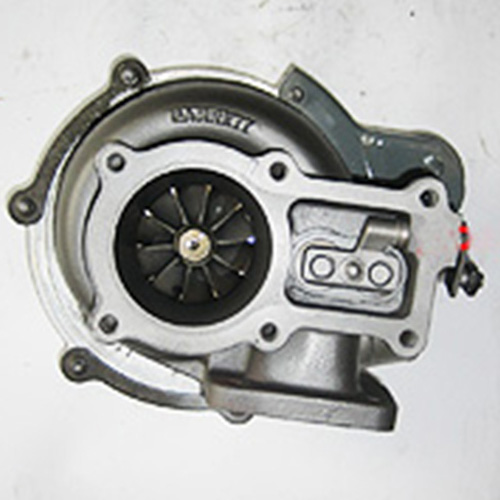

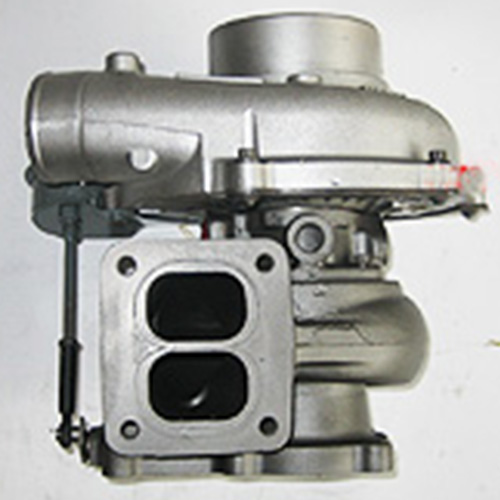

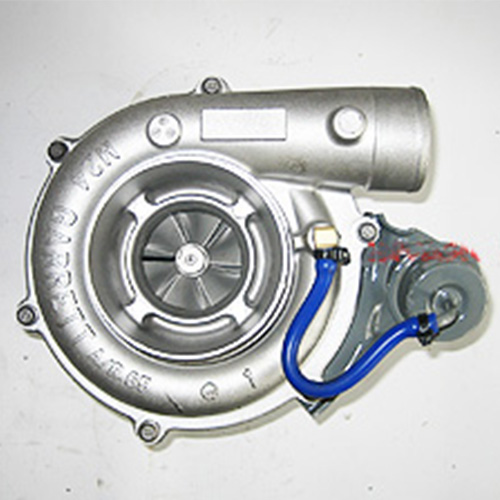

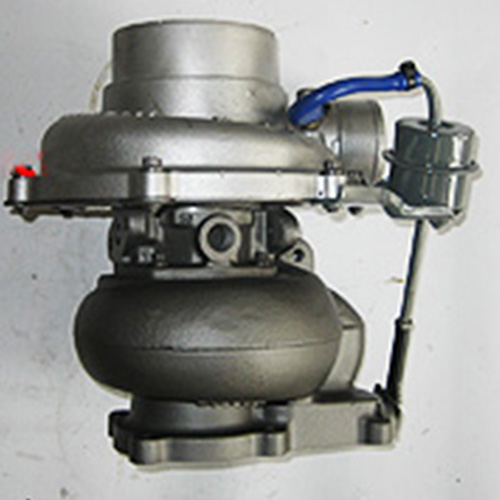

2000- Nissan Highway Truck (U D) GT3576DL Turbo 702172-0006
Part Number 702172-0006
Previous Version 702172-0003, 702172-0006, 702172-0008, 702172-0010, 702172-0002, 702172-0013, 702172-6
OE number 14201Z5714, 14201Z5763, 14201Z5770, 14201Z5778, 14201Z5907, 14201Z5711
Description NISSAN Highway Truck AND Buses
Application NISSAN UD LK, MK, PK
Engine B6-60 Ti, FE6TA
CHRA 700267-0002 (700267-5002S)
Turbo Model GT3576DL, GT3576DLx
Displacement 6.9L, 6900 ccm, 24V Cylinders
KW 170
Engine Manufacturer Nissan
S/N FG0151J
Series 245-265
Angle α (compressor housing) 165º
Angle β (turbine housing) 270º
Bearing Housing 479822-0002
Turbine Wheel 451360-0002 (Ind. 68. mm, Exd. 60. mm, 10 Blades)
Comp. Wheel 434292-0009/434292-0011 (Ind. 76.3 mm, Exd. 57. mm, 6+6 Blades)
Back plate 480301-0001 (carbon seal)
Heat shield Number 447553-0005
Repair Kit 709147-0001 (1102032750)
Turbine Housing 447685-0060
Compressor Cover 409589-0496
Actuator 480021-0017
Settings Waste gate (pressure) 1.380-1.447 Bar
Settings Waste gate (lifting rod) 0.38 mm
Manufacturer Honeywell-Garrett
Condition Rebuilt
Applications
2000- UD-Nissan Highway Truck & Buses 2300 FE6TA
