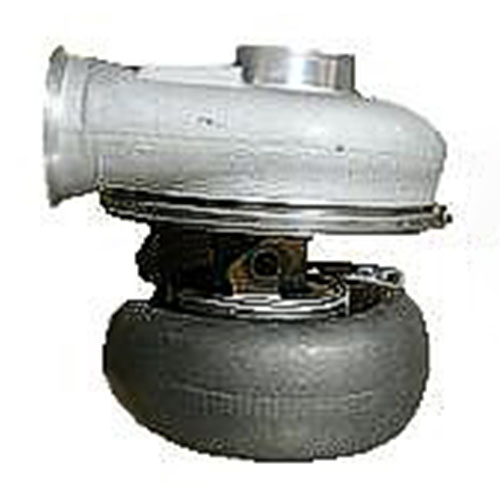

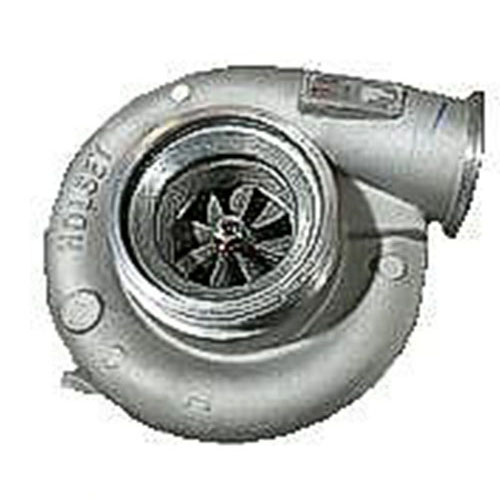

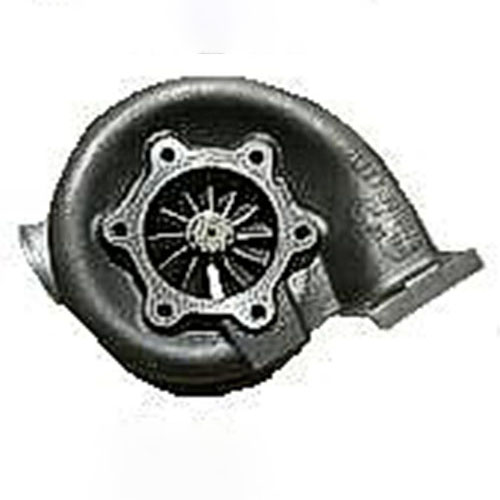

1999- Cummins Industrial Excavator HX60 Turbo 3539748
Part Number 3539748
OE Number 3804939
Description Industrial
Manufacturer Part Number 3539749, 3539901
CHRA 4027260 (4027260H)
Turbo Model HX60-0988C/B36A1, HX60
Engine VTA30-C
Engine Manufacturer Cummins
Angle α (compressor housing) 190º
Angle β (turbine housing) 40º
Bearing Housing 3539750 (Oil Cooled)
Turbine Wheel 3532198 (3532198H)(Ind. 86.65 mm, Exd. 97. mm, Trm 17.05, 12 Blades)(1100016368)
Comp. Wheel 3531538 (Ind. 76. mm, Exd. 109. mm, Trm 17.11, 8+8 Blades, Superback)
Back plate 3531917 (59618, 3759618, 3500710, 166084, 168084, 183472, 143144-0000)(1150704300)
Heat shield Number 3519155 (351915500)
Repair Kit 4027880 (3580568, 3545345, 3537113)(1153060750)
Turbine Housing 3518130
Compressor Cover 3536071
Manufacturer HOLSET
Applications
1999- Cummins Industrial with VTA30-C Engine
