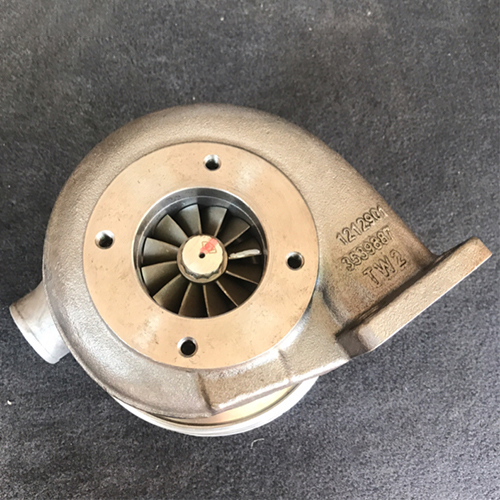

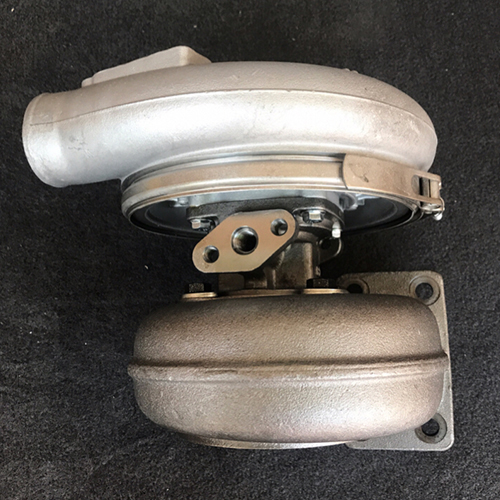

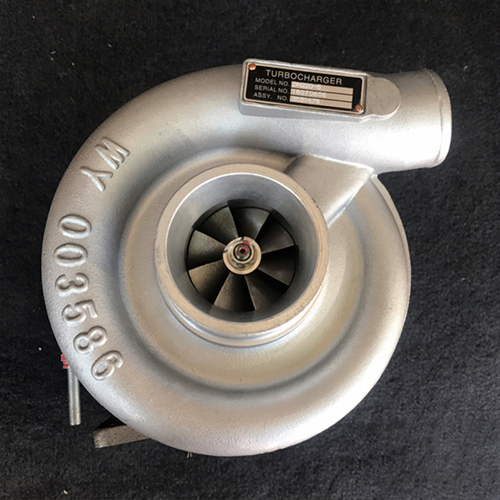

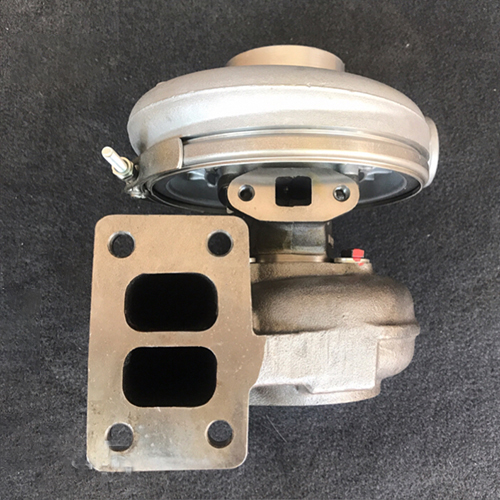

1999-11 Daewoo Industrial-Excavator HX35 Turbo 3539678
Part Number 3539678
Previous versions 3539678, 3539679, 3591461, 3593185
OE number 65.09100-7060, 65.09100-7197, 65.09100-7040, 65.09100-7093, 65091007093, 65091007197, 65091007040, 65091007060
Description Industrial Excavator, Doosan
CHRA 4027571 (4027482)
Turbo Model HX35-L8223AB/E12F11, HX35
Engine Model DB58TI, DB33TIM, S225LC-V, DB33 TIM, DB58TI Tier-1
Displacement 5.8L, 5800 ccm TIER 1
Engine Manufacturer Daewoo
Angle α (compressor housing) 80/180/225/345º
Angle β (turbine housing) 90/360º
Bearing Housing 3599890
Turbine Wheel 3519336 (3595832) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435)
Rotor Assembly 4032357
Comp. Wheel 3599590
Back plate, Seal plate 3530923 (1154351300)
Heat shield, Shroud 3519302 (3519304)(1152301340)
Repair Kit 3575169 (4027484) (1153035750)
Turbine Housing 3539724
Compressor Cover 4037108
Gasket Kit 3545575 (1900100057)
Manufacturer HOLSET
Applications
1997-11 Daewoo Industrial-Excavator Gen Set with S225LC-V, DB33 TIM, DB58TI Tier-1 Engine
===================
Part Number 3539679
Previous Version 3591461, 3593185, 3539678, 4033596, 3593185, 4035455
OE number 65091007197, 65091007060, 65091007040, 65.09100-7040 , 65.09100-7060, 65.09100-7197
Description Earth Moving Industrial-Excavator, DOOSAN-DAEWOO
CHRA 4027571 (4027482)
Turbo Model HX35, HX35-L8223AB/E12F11
Fitted To Engine DB58TI TIER 1
Engine Model DB33-TIM-DB58TI TIER1, DB58TI-5225LC-V, DB58TI, DB33TIM, S225
Displacement 5.8L, 5800 ccm TIER 1
Engine Manufacturer Daewoo
Angle α (compressor housing) 80/180/225/345º
Angle β (turbine housing) 90/360º
Bearing Housing 3599890
Turbine Wheel 3519336 (3595832) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435)
Rotor Assembly 4032357
Comp. Wheel 3599590
Back plate, Seal plate 3530923 (1154351300)
Heat shield, Shroud 3519302 (3519304)(1152301340)
Repair Kit 3575169 (4027484) (1153035750)
Turbine Housing 3539724
Compressor Cover 4037108
Gasket Kit 3545575 (1900100057)
Replaced By 3539678
Manufacturer HOLSET
Applications
1999-11 Daewoo Excavator with DB58TI TIER 1 Engine
