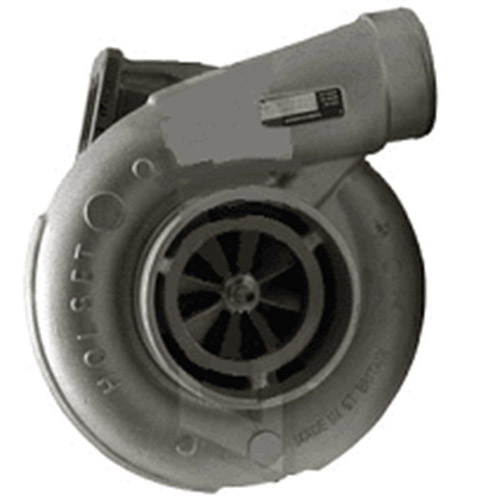

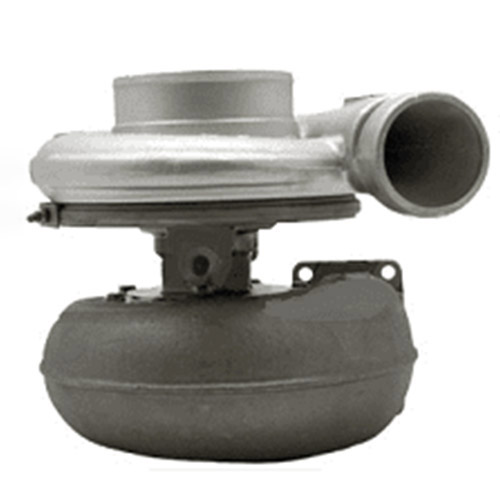

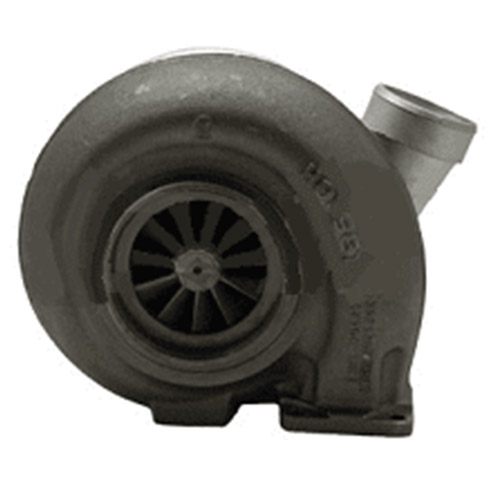

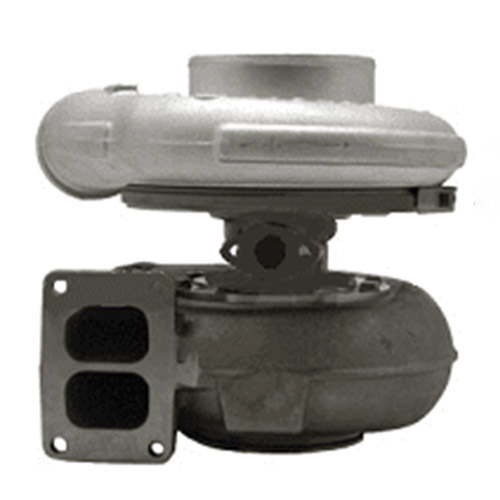

1998-01 Cummins GenSet Various HC5A Turbo 3594043
Part Number 3594043
Previous Part Number 3524632, 3524633, 3533953, 3533954, 3592524, 3594043, 3594044, 3594045, 4033581
OE number 3801689, 3801689NX, 3801689RX
Manufacturer Part Number 3594044,- 3594045, 3594046, 3594047
Description GenSet Various
CHRA 3545702 (402708400)
Turbo Model HC5A-2741U/B47D3, HC5A
Engine K19R, KTA19
Displacement 19.0L, 1900 ccm
Engine Manufacturer Cummins
Fuel Gas
Angle α (compressor housing) 127°
Angle β (turbine housing) 293°
Bearing housing 3523429 (352342900)(3022514, 5149403)(Oil Cooling)(1900011448)
Turbine Wheel 3521033 (3521033, 75124631)(Ind. 129. mm, Exd. 95.4 mm, Trm 19, 11 Blades)(1152105435, 1100016472)
Comp. Wheel 3521918 (Ind. 121.8 mm, Exd. 85.2 mm, Trm 47, 8+8 Blades)(1200030005)
Back plate 3524862 (352486200)
Heat Shield 3519783 (351978300)
Repair Kit 4027970 (4027974, 3575236, 3545647, 4027966)(1152105750, 1152105756, 5000020020)
Gasket (turbine inlet) 409038-0000 (132040, 52231083002, 1900000004)
Gasket (oil outlet) 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
Replaced By 3594085
Replaced by 3594043 (3594044, 3594045, 3594046, 3594047)
Manufacturer HOLSET
Applications
1998-01 Cummins GenSet Various with K19R, KTA19 Engine
