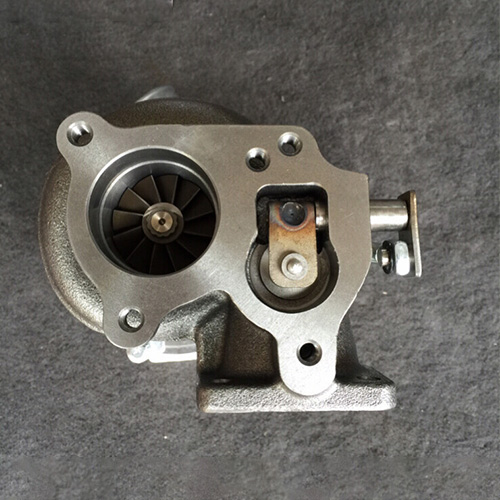

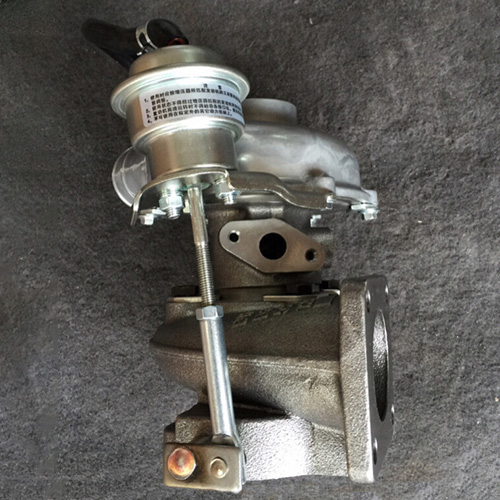

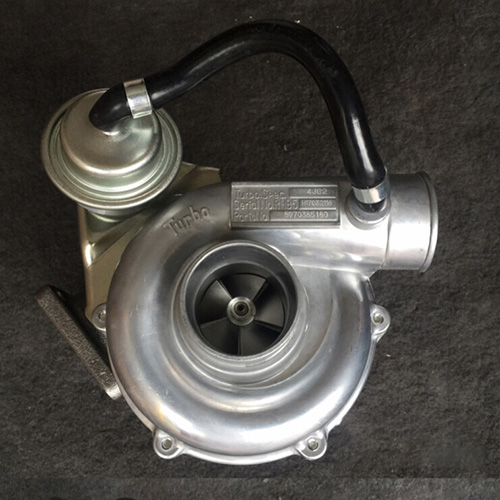

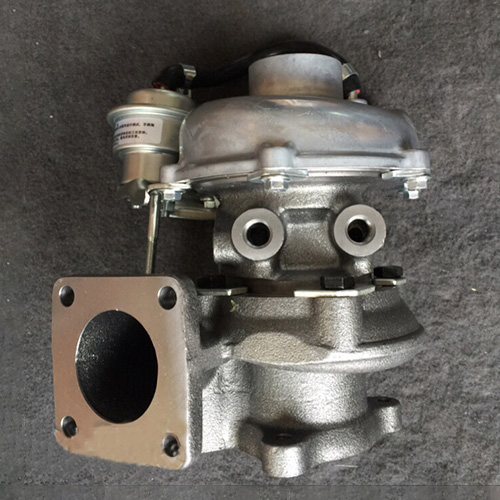

1991-98 Isuzu Trooper, Opel Monterey RHB52W Turbo VE180027 VI95
Part Number VE180027
Previous Part Number VA180027, VD180027
OE Number 8970385180, 8970385181, 8-9703-85180, 8-9703-85181, 860010
V-SPEC. VI95
Description Isuzu Trooper, Opel Vauxhall Monterey
CHRA VA810037 (1000040115)
Turbo Model RHB52W-70005P15NBR3911E
Engine 4JG2-TC, P756-TC, 4JB1TC
Capacity 3059/3100 ccm
Power 84/113 HP
Engine Manufacturer Isuzu, Opel
Angle α (compressor housing) 114°
Angle β (turbine housing) 319°
Bearing Housing NN133362 (053T-520, NN133378, NN133382)(1900011199)
Turbine Wheel NN131614 (NN131502)(223T-515)(Ind. 40. mm, Exd. 52.5 mm, 11 Blades)(1100016012)
Comp. Wheel NN136610 (NN136603, 39T-044)(Ind. 38.5 mm, Exd. 52.5 mm, 6+6 Blades)(1200020268)
Back plate NN133021 (NN133001)(64T-002)(1800016033)
Heat shield Number NN137055 (38T-013)(2030016019)
Repair Kit NN139921 (NN139922)(509T-545)(5000080115)
Turbine Housing NN139613
Compressor Cover NN134842
Turbine Housing AR 15
Actuator NH987001
Settings Waste gate (pressure) 1.182 bar
Settings Waste gate (lifting rod) 2.00 mm
Gasket Kit (2090505291M)
Gasket (turbine inlet) 210276 (2445051, Metal)
Gasket (turbine outlet) 210578 (2495128, Metal)
Gasket (oil outlet) 210636 (2445067, Paper)
Gasket (oil inlet) 1203215 (1203715)(Paper)
Gasket (Water) 1203216
Manufacturer IHI
Applications
1991- Isuzu Trooper Engine P756-TC, 4JG2-TC
1991-93 Opel Monterey A 3.1L TD Engine 4JG2TC
1998-98 Opel Monterey A 3.1L TD Engine 4JG2-TC
